ASCII-Products

This file format offers to import product data from text files (ASCII, *.txt).

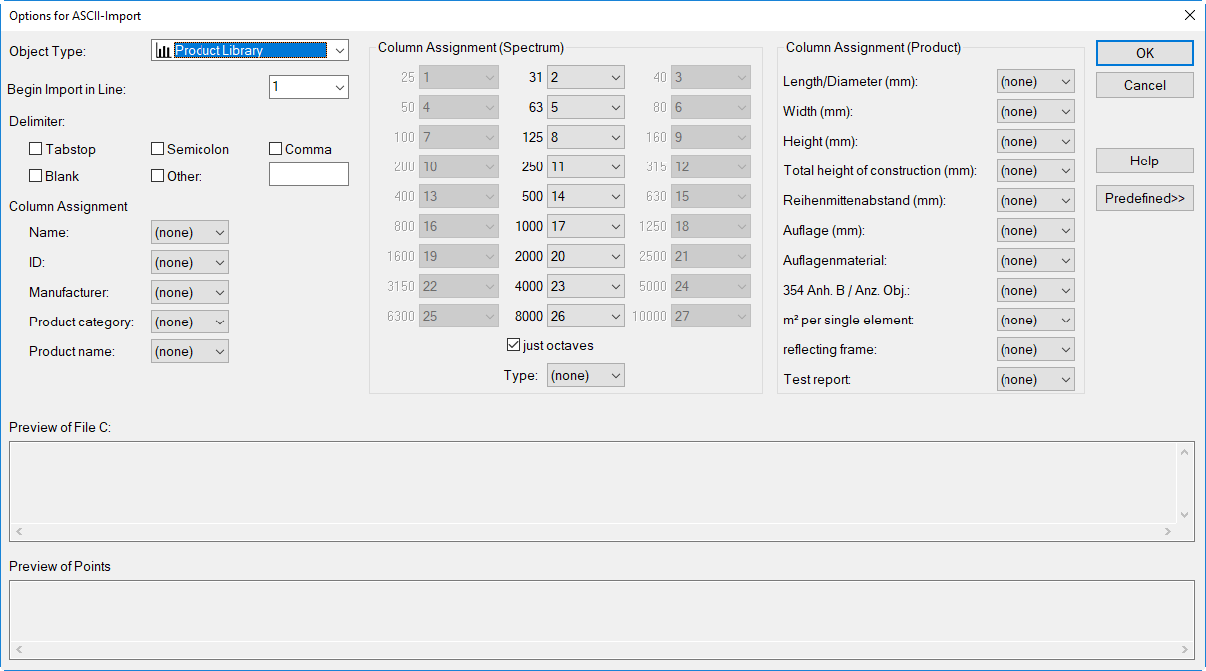

Dialog options

Note

The options on the dialog match the respective options for the import file format „ASCII-Objects“ (see above), except for the options listed below.

Object Type

for the time being: Product Library

Column Assignment

for Name, ID, Manufacturer, Product category, Product name

Column Assignment (Spectrum)

Deactivating the option „just octaves“ enables to assign the third-octave band frequencies.

Column Assignment (Product)

for the following product properties:

  • Length/Diameter (mm)
  • Width (mm)
  • Height (mm)
  • Total height of construction (mm)
  • distance to centers (mm)
  • thickness top lining (mm)
  • lining material
  • mounting condition accord. to ISO 354 annex B or No. of Objects
  • m² per single element
  • reflecting frame
  • Test report
