Grid Appearance

Via the dialog Appearance on the Grid menu the settings for displaying grid results are defined. The dialog comprises of the following sections:

  • section „Show“: selection of display mode
  • section „Color Palettes“: selection of color palettes, globally for all evaluation parameters or individually for each evaluation parameter.
  • Level Range and Line Width: This section corresponds with the options available in former releases of CadnaR. The display options resulting from former CadnaR files will be displayed for color palette „(file)“.

Note

When using color palettes, it is recommended to deactivate the option „Level Range“.

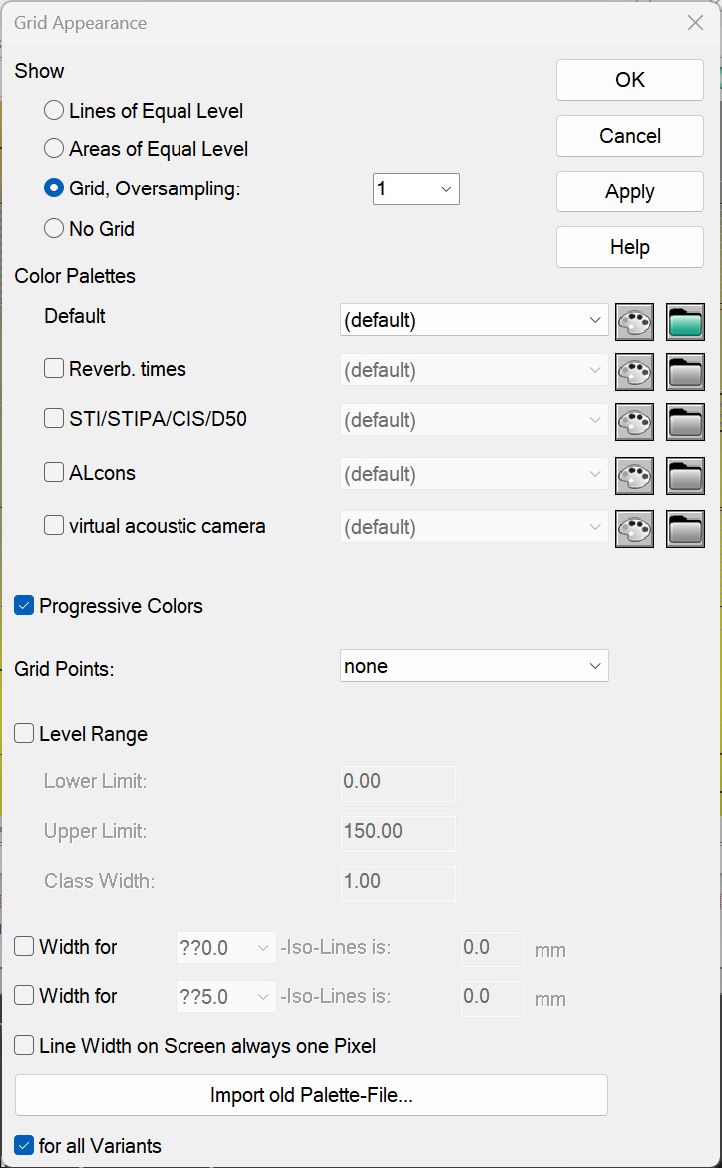

Dialog Grid Appearance

Button „Apply“

When clicking the button „Apply“ the modifications are applied to the main window immediately while keeping the dialog open.

Show ...

Lines of Equal Sound Level

With this option the lines of equal sound level or value are displayed on the grid. The value range and the class width (and all further settings) result from the select color palette/s. The grid caption results from the specification for „Single Value“ of the selected color palette (see Color Palettes (local/global)).

Areas of Equal Sound Level

With this option the areas of equal sound level or value are displayed on the grid. The value range and the class width (and all further settings) result from the selected color palette/s. The grid caption results from the specification for „Interval“ of the selected color palette (see Color Palettes (local/global)). Depending on the receiver spacing on the grid, uncolored areas in the vicinity of obstacles may result.

Raster, Oversampling

When the oversampling is set to 1 (default value) the representation applies the resolution of the specified receiver spacing (see Specification). With an oversampling of larger than 1 intermediate grid points are generated additionally. The sound level or other value at those intermediate points is determined by linear interpolation.

No Grid

With this option no noise map is displayed on the graphics (2D-view). Nevertheless, on the 3D-View the colored grid is still displayed. To avoid this, switch on the 3D-View, Representation menu the option „Grid Representation“ to „off“. On the 3D-View, this will cause the no grid being displayed.

Color Palettes

On the dialog section „Color Palettes“ the color palettes for up to four evaluation parameters are selected. With the default setting, the color palette selected for „Default“ (level grid) is applied to all further evaluation parameters „Reverb. Times“, „STI/STIPA/CIS/D50“ and „ALcons“. To select a color palette for each evaluation parameter first activate the respective check box.

Due to the different value ranges of the evaluation parameters, it is useful to select a suitable color palette, for example:

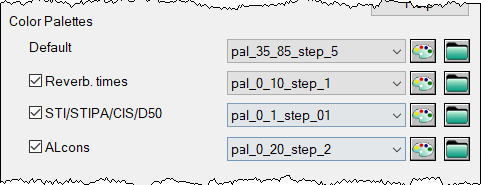

Different global palettes selected for four parameters.„Default“ refers to the level grid.

Color Palette „default“

By default, the color palette „(default)“ is preselected for all grids. The default color palette corresponds with the formerly used grid appearance settings, with respect to the type of grid shown (Raster, Oversampling 1) and the level range.

Color Palette „file“

When loading a file which has been generated using a former version of CadnaR the settings on dialog Grid Appearance will be displayed for the color palette „(file)“. The color palette „(file)“ is stored in the local library of color palettes (see Color Palettes (local/global)).

Editing a color palette

This button gives a direct access to currently selected local color palette. Subsequently, the color palette can be editing (see Color Palettes (local/global)). Changes will be applied on closing the dialog Library: Color Palette.

Selecting a color palette

A color palette can be selected from the dropdown menu. The entries in the drowdown menu are the colorpalettes from the CadnaR default library (stored in the *.exe file). Color palettes stored in the local library -if available- are placed on top/above the entries of the default library. An entry from the default library can be identified through the greyed out button for editing the color palette. Use the library manager (see Library-Manager) to copy color palettes from the default library to the local or global library.

Color palettes from the global library are selected by clicking the file selection symbol. SHIFT-clicking on the file selection symbol opens the local library of color palettes.

Progressive Colors

This option may have three modes: deactivated (no tick mark), activated (black tick mark), neutral (grey tick mark). In the neutral mode (default setting) the setting for „Progressive Color“ of the respective color palette applies. Thus, if a progressive color has been defined in the color palette it will be used, and vice versa. With this option deactivated, color palettes with progressive colors show use distinct color with transition. With this option activated, color palettes without progressive colors show them, instead.

Grid Points

The option „Grid Points“ enables to mark the locations on the grid where the level has been calculated (selection „Dots“) or to display the calculated levels or the value of the other evaluation parameters at those locations (selection „Values“).

Level Range

When loading a file created by a former release of CadnaR, the dialog Grid Appearance displays the grid settings for the color palette „(file)“. The lines and areas of equal sound level include - as it was the case with former releases of CadnaR - the upper limit of every value range (i.e the option „Interval Border to Lower Interval (lo < xxx <= hi)“ is activated, see Color Palettes (local/global)).

Class Width

The value in this box will just have an effect if either the option „Lines of Equal Sound Level“ or „Areas of Equal Sound Level“ is activated. The class width defines the width between adjacent lines of equal sound level.

Lower/Upper Limit

The lower and upper limits define the level range.

The option „Level Range“ should nowadays not be used when defining the grid appearance as it disables the selected color palettes.

Symbol

The grid captions as being defined can be inserted into the graphics and be printed via the Plot-Designer by use of the object „Symbol“ (see Caption Cell).

Line Width

Provided the display mode „Lines of Equal Sound Level“ is selected, noise contours can be highlighted by thicker lines in intervals. For example, in order to draw a thicker line in steps of 10 dB, activate the first option „Line Width“ and select „??0.0" from the list box. Here, the question marks serve as wild cards for any other figure. In order to draw a thicker line in steps of 5 dB in addition, activate the second option „Line Width“ and select „??5.0" from the list box. The line widths are specified in tenths of millimeters (mm/10).

Note

As already with the level range, the option „Line Width“ is only used to display grid appearance settings resulting from former CadnaR files. Nowadays, the definition of the line width for each value range is part of the color palette.

Option "Line Width on Screen always one Pixel"

If the line width of the iso-dB lines is selected larger than 1 pixel (default value), depending on the display driver, the build-up of the graphics on the screen may take some time. To avoid this, you can prevent the line width from being displayed in its defined width by clicking this option. On the screen no change in the line thickness occurs. In this case, the defined line width is used for printing only.

Import of old Palette-Files

The button „Import old Palette-File“ enables to load files with color palettes (file extension *.PAL) from former CadnaR releases. The imported color palette is shown on the list box for the evaluation parameter 1 and simultaneously copied to the local library.

This feature can be used to import an arbitrary number of existing color palettes to the local library by multiple import.

Option „for all Variants“

This option is enabled by default. In this case, the same settings for the grid appearance are used for all active variants (see Variants).

By deactivating this option for a distinct variant - after this variant been selected - and specifying a different grid appearance for this variant, this option is automatically deactivated by CadnaR for all other active variants. For these variants, however, the current grid appearance settings are not changed.

Note

In case this option is deactivated (for one or for all variants) and the grid appearance settings match for all active variants, the option is activated by CadnaR for all variants automatically.
