Receiver Chain

A receiver chain represents a polygon of 15 polygon points at maximum which is entered as usual with other line-like objects.

With the option „SDC“ activated, clicking on „Create Path“ (see below) generates a receiver chain with points according to VDI 3760 within the room, which may consist of more than 15 polygon points.

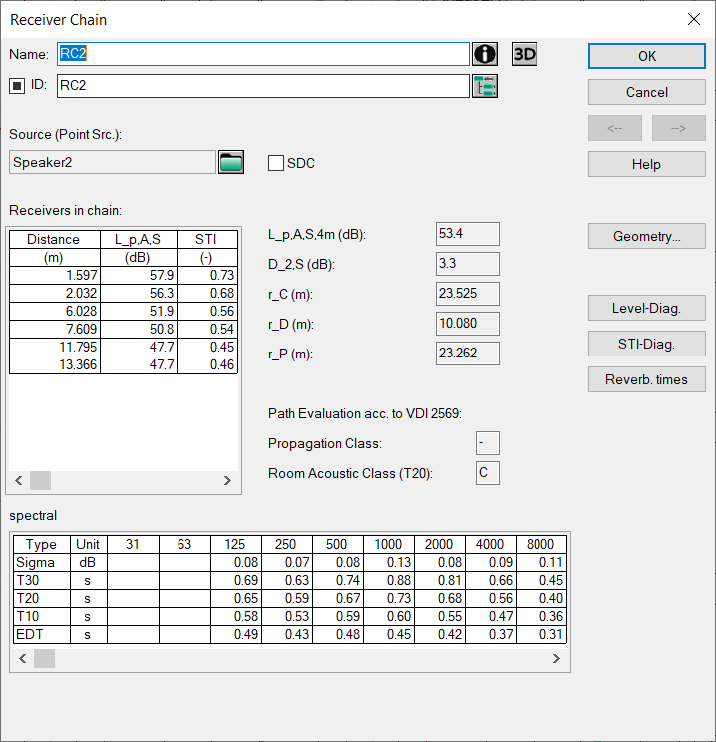

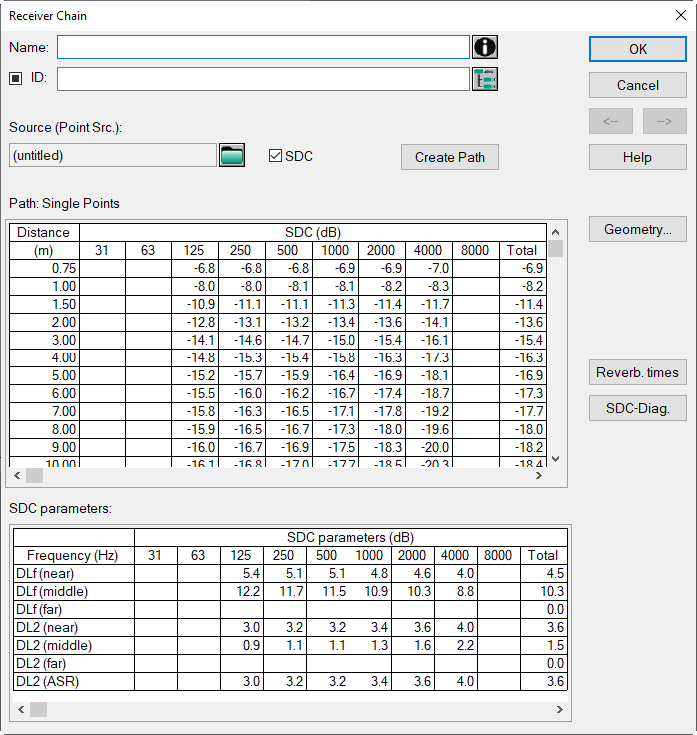

Dialog Receiver Chain with individual path geometry	Dialog Receiver Chain with Option SDC activated
