Box-Type Obstacle

The box-type obstacle in CadnaR cuboid obstacle object.

Regarding the input options using the mouse see Inserting Objects.

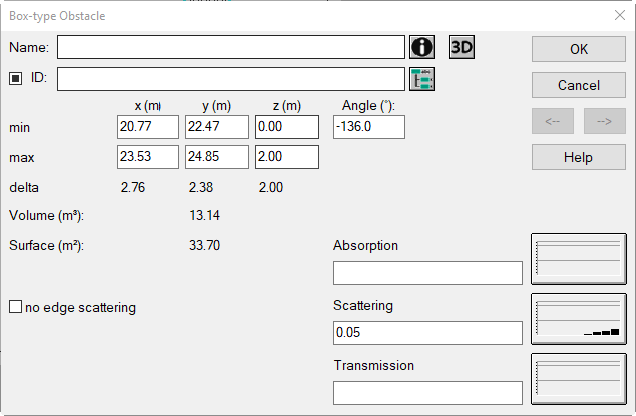

Dialog Box-Type Obstacle

Dialog options

• Name, ID, ObjectTree and Memo-Window see Common Input Data
• Geometry Data:
  • min (x,y,z): coordinates of the lower left corner of the box-type obstacle
  • max (x,y,z): coordinates of the upper right corner of the box-type obstacle
  • Angle: angle between the first polygon section and the +x axis (0°)
  • delta: difference max (x,y,z) - min (x,y,z)
  • Surface in m²/Volume in m
• Buttons „Absorption/Scattering/Transmission“: see Common Input Data - Obstacles
• Option „no edge scattering“ and button „3D“: see Common Input Data - Obstacles
