Vertical Area Source

Vertical area sources represent a source type with two dimensional geometry in z-direction. Vertical area source may consist of several sections and may be entered as a floating object (i.e. above floor level)..

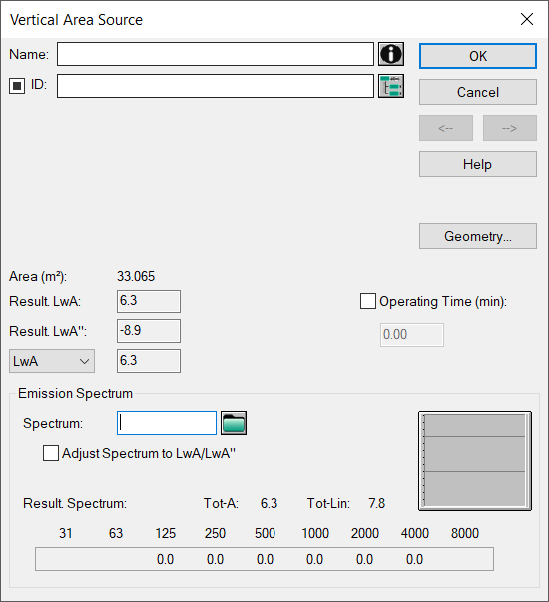

Dialog Vertical Area Source

Dialog options

  • Name, ID, ObjectTree and Memo-Window see Common Input Data
  • Area: area of the source (in m²)
  • Result. LwA / Result. LwA" (dB): shows the resulting A-weighted sound pressure level and the A-weighted sound pressure level per unit area
  • Sound Power Level LwA / LwA" (dB), operating time and dialog range „Emission Spectrum“: see Common Input Data - Sources
  • Button Geometry: see Common Input Data - Geometry
