Table Partial Level

The table Partial Level lists the partial levels of all active sources at all receiver points.

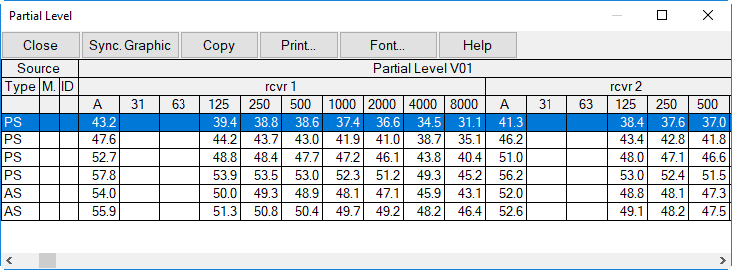

Table Partial Level for 2 Receiver Points

The table shows the following columns:

  • M: activation status of the source (+: active, -: deactive)
  • Type: source type (PQ, LQ, FQ, FV, QQ: point, line, area, vert. area, box-type source)
  • Name: name of the source
  • Partial Level: A-weighted sound pressure level and linear octave band level spectrum (after a calculation)

Note

The number of decimals X displayed in the table can be specified via INI file (section [Main], dBOutPrec=X, see Edit INI-File).
